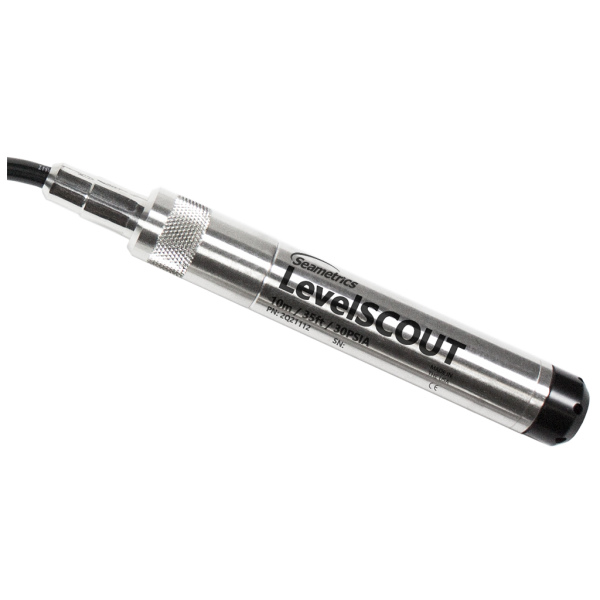

LevelSCOUT

Level & Temperature Sensor with Datalogging
  • Records level and temperature
  • Low power—4.5 year battery life
  • Integrated datalogger collects up to 50,000 records
  • Small diameter—0.875″ (2.22 cm)
  • Easily connects with other sensors via RS485 network
  • Includes new Aqua4Plus control software

Get a Quote Find a Distributor

Description

The LevelSCOUT Level Logger is great almost anywhere you need to measure level and temperature—whether it be in a lake, a tank, or a well.

A level and temperature sensor with integrated datalogging, this sensor is constructed with 316 stainless steel or titanium, fluoropolymer, and acetal—providing highly accurate readings in rugged and corrosive field conditions.

Features

Sensor

  • Measures level, temperature, and time
  • Thermally compensated—great where water temperatures vary, such as in streams or industrial tank applications
  • ± 0.05% FS
  • Low power—4.5 year battery life
  • 316 stainless steel, fluoropolymer, and acetal construction (titanium optional)
  • Modbus® RTU protocol—for great flexibility

Datalogger

  • Non-volatile memory—your data will not be lost in the event of a power failure
  • Pause logging feature—temporarily pause the logging while repositioning or transporting sensor
  • Delayed start feature—state a specific future start time, making it easy to set several sensors to start at the same time

Cabling & Networking

  • Wireless connectivity
  • RS485 network—allows several sensors to be networked together and provides much longer cable leads
  • Field-serviceable connectors—easily remove the connector, route cable through well seals, walls, or conduit, and then replace connector
  • Available cableless or with a user attachable PU or ETFE cable

Software

  • Comes with free Aqua4Plus control software to get you up and running immediately
  • View your data in real-time
  • Easy export to spreadsheets and databases
  • Barometric compensation utility
  • Update sensor via firmware while in the field—great for future updates

Applications

  • Site assessments
  • Tidal studies
  • Environmental monitoring
  • Surface water discharge measurement
  • Aquifer level monitoring
  • Aquifer storage & recovery
